Detailed information of oriT

oriT

The information of the oriT region


oriTDB ID   115455
Name   oriT_pHN7DS4 in_silico
Organism   Citrobacter freundii strain GZ7DS4
Sequence Completeness      -
NCBI accession of oriT (coordinates [strand])   NZ_MN276082 (41902..42519 [+], 618 nt)
oriT length   618 nt
IRs (inverted repeats)      589..594, 608..613  (TCCATG..CATGGA)
 592..597, 602..607  (ATGCCC..GGGCAT)
 520..527, 530..537  (CCTCCCGT..ACGGGAGG)
 455..460, 464..469  (ATTCGC..GCGAAT)
 197..202, 208..213  (TTCAAT..ATTGAA)
 85..90, 96..101  (TGCTTT..AAAGCA)
Location of nic site      315..316
Conserved sequence flanking the
  nic site    		  TCCTGCATCG
Note   Predicted by oriTfinder 2.0

  oriT sequence


Download         Length: 618 nt

>oriT_pHN7DS4
TTCTTTGTTTCCCTGTCAAATACATTGTGGTTTTGATAAAATCATCATTGTCTTTTGACACATTAACATCTTCATTTTTAACCTTGCTTTTCAGTAAAGCATTGGCAAGCAGCTTCATTCCTTTTGCCACGGTTAAACCCGGTTCATCTGGATAAAGTGTTTTAAGACAATCAAGTAGATCATCATGTTGGCTTTCTTCAATCCTGAATTGAACTTTTTTCATAAAACTCTCCAACAAGAACCGACTGTAGGTCACCGGGCAAACGTTGCGGAATGGCGTCAGAGACGTCATTTTGCGGCGTTTGCCCTATCCTGCATCGCAGTGAACTACCTCCACACATAAATTGTGCTTCAGCGTCCATCGAAATGCAAAAAATGAAAGGCTATCGTGGCTGTGATCTGGTGCGTCTGCGACCGGAGACATCGGATTCGCGGCTAACTTGGGCGGAAATAAATTCGCTACGCGAATGGCCTGGCAGGGGGCGCGAGCGCTGTTTTACGGAATATACAAAAAAAGCACCTCCCGTAAACGGGAGGGCTTCGGCGATTCAGGAACGGGAATTTTATTCTGCCTCTGGTGTGTCGCCTTCCATGCCCTGCCGGGCATCATGGAGCCAG

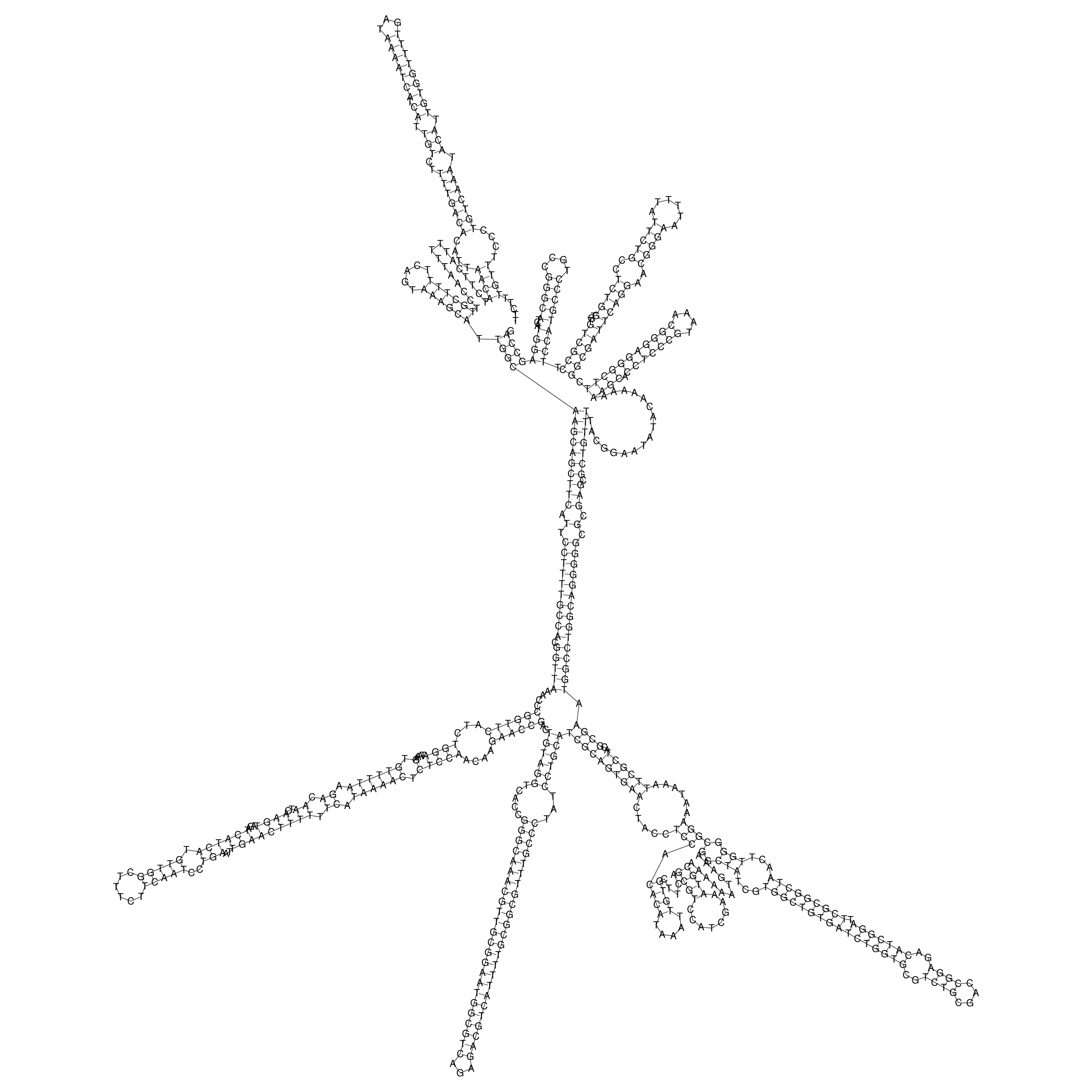

Visualization of oriT structure

  oriT secondary structure

Predicted by RNAfold.

Download structure file


Relaxase

ID   9896 GenBank   WP_004199101
Name   mobP1_H5D67_RS00255_pHN7DS4 insolico UniProt ID   A0A515HL38
Length   386 a.a. PDB ID
Note   Predicted by oriTfinder 2.0

  Relaxase protein sequence


Download         Length: 386 a.a.        Molecular weight: 44388.82 Da        Isoelectric Point: 10.6017

>WP_004199101.1 MULTISPECIES: MobP1 family relaxase [Enterobacterales]
MGVYVDKEFRVKRKSSEAGRKSAFAHKVKNGGKNYQRNVQERINRKGASKEVVVKISGGAITRQGVRNSI
DYMSRESELPVMSESGQVWKGDEIQEAKEHMIDRANDPQNVFDDKGKENKKVTQNIVFSPPVSAKVKPED
LLESVRKTMNKKYPNHRFVLGYHNDKKEHPHVHVVFRIRDNDGKRADIRKKDLREIRTGFCEELKMKGYD
VKATHKQQHGLNQSIKDAHKTAPKRQKGVYEVVDVGYDHYQNDKTKPKQHFIKLKTLNKGVEKTYWGADF
GELTTRENVKKGDLVKLKKLGQKEVKIPALDKNGVQHGWKTAHRNEWQLENLGVKGIDRISSSSKELVLN
SAEMIKKQQLQMRNFSQIKQSMIQSEQKVKIGIRLG

  Protein domains


Predicted by InterproScan.

Relaxase/Mobilisation nuclease domain (Relaxase)

(90-240)


  Protein structure


Source ID Structure
AlphaFold DB A0A515HL38


T4CP

ID   11533 GenBank   WP_000053822
Name   t4cp2_H5D67_RS00185_pHN7DS4 insolico UniProt ID   _
Length   611 a.a. PDB ID   _
Note   Predicted by oriTfinder 2.0

  T4CP protein sequence


Download         Length: 611 a.a.        Molecular weight: 69204.04 Da        Isoelectric Point: 7.4342

>WP_000053822.1 MULTISPECIES: type IV secretory system conjugative DNA transfer family protein [Enterobacterales]
MSLKLPDKGQWAFIGLVMCLVTYYTGSVAVYFLNGKTPLYIWKNFDSMLLWRIITESNIRTDIRLTAIPS
LLSGMVSSLIVPVFIIWQLNKTDVALYGDAKFASDNDLRKSKLLKWEKENDTDILVGAYKGKYLWYTAPD
FVSLGAGTRAGKGAAIGIPNLLVRKHSLIALDPKQELWKITSKVREKLLGNKVYLLDPFNSKTHQFNPLF
YIDLKEESGAKDLLKLIEILFPSYGLTGAEAHFNNLAGQYWTGLAKLLHFFINYDPSWLGEFGLKPVFSI
GSVVDLYSNIDRELILSKREDLEGTKGLDENALYHLRDALTKIREYHETEDEQRSSIDGSFRKKMSLFYL
PTVRKCTDGNDFDLRQLRREDITVYVGVNAEDMSLAYDFLNLFFNFVVEVTLRENPDFDPTLKHDCLMFL
DEFPSIGYMPIIKKGSGYIAGFKLKLLTIYQNISQLNEIYGVEGAKTLMSAHPCRIIYAVSEEDDAKKIS
EKLGYITTKSTGSSKTSGRSTSKSSSESEAQRALVLPQELGTLDFKEEFIILKGENPVKAEKALYFLDPY
FMDRLMMVSPKLTELTASLNKTKKVLGVKGLKYPSKEKMLSVGELESEVLL

  Protein domains


Predicted by InterproScan.

Type IV secretory system Conjugative DNA transfer (T4SS-DNA_transf)

(102-572)

  Protein structure



No available structure.



ID   11534 GenBank   WP_015060057
Name   t4cp2_H5D67_RS00230_pHN7DS4 insolico UniProt ID   _
Length   917 a.a. PDB ID   _
Note   Predicted by oriTfinder 2.0

  T4CP protein sequence


Download         Length: 917 a.a.        Molecular weight: 104788.72 Da        Isoelectric Point: 6.2666

>WP_015060057.1 MULTISPECIES: VirB3 family type IV secretion system protein [Enterobacterales]
MSTVFKGLTRPALIRGLGVPLYPFLGMCVICVLLGVWIHEAMYALILPGWYAIKRVTKIDERFFDLLYLR
MQIKGNPLANKRFNAVHYAGSSYDAVDISKVDNFMKLKDQSSLEELIPYSSHITDNLIVTRNHDLLATWQ
IDGAYFECVDEADLALLTDQLNTLIRSFDGKPVTFYTHRIRVRKEVRPVFDSKIPFVNRVMNDYYESLSA
AEYFENKLYLTVCYKPFSAEDKVTHFLSRKKGNKNIFEEPINDMNEICGRLSTYLSRFHSRRLGLYEENN
IVYSEQLTLFQKLLSGRWQKVRVTNSPFYTYLGGKDLFFGNDAGQITASDHARYFRCIEIKDYFQETDAG
IFDALMYLPVEYVQTSSLTPIDKQSAIKALDDQIDKLEMTDDAAKSLLADLKVGLDMVSSGYISFGKSHQ
TLIVYADSPERLVKDTNIVTTTLEDLGLIVTYSTLSLGAAYFAQLPGNYTLRPRLSSISSLNFAEMESFH
NFFTGKEKGNTWGNNLITLGGSGNDIYNLNYHMTTEHQNYFGKNPTLGHTEILGTSNVGKTVVMMTKAFA
AQQFGTPESFPPERKLKKLTTVFFDKDRAAEPGIRSMGGAYFRVKEGEPTGWNPAALPPTKRNISFMKDL
VRLLCTLNSEPLDDYQNRLISDAVERLMQRSNRSYPISKLRPLILEPDDTETRRHGLKARLNAWVQGGEF
GWVFDNPDDTFDVDNLDVFGIDGTEFLDNKVLSSAASFYLIYRVTMLADGRRLLIYMDEFWQWINNEAFR
DFVYNKLKTARKLDMVLVVATQSPDELIKSPIAAAVREQCATHIYLANPKAKRSEYVDELEVRELYFDKI
KAIDPLSRQFLVVKNPQRKGESDDFAAFARLDLGKAAYYLPVLSASKPQLELFDEIWKEGMKPEEWLDTY
LERANLI

  Protein domains


Predicted by InterproScan.

CagE, TrbE, VirB family, component of type IV transporter system (CagE_TrbE_VirB)

(272-474)

Type IV secretory pathway, VirB3-like protein (VirB3)

(2-83)

  Protein structure



No available structure.




T4SS

T4SS were predicted by using oriTfinder2.

Region 1: 29212..39321

Locus tag Coordinates Strand Size (bp) Protein ID Product Description
H5D67_RS00160 24335..25597 - 1263 WP_000517490 ATP-binding protein -
H5D67_RS00165 25680..26174 - 495 WP_001215543 thermonuclease family protein -
H5D67_RS00170 26171..26497 - 327 WP_004208538 hypothetical protein -
H5D67_RS00175 26583..26897 - 315 WP_000754496 TrbM/KikA/MpfK family conjugal transfer protein -
H5D67_RS00180 26985..27377 - 393 WP_000738524 cag pathogenicity island Cag12 family protein -
H5D67_RS00185 27374..29209 - 1836 WP_000053822 type IV secretory system conjugative DNA transfer family protein -
H5D67_RS00190 29212..30246 - 1035 WP_000650512 P-type DNA transfer ATPase VirB11 virB11
H5D67_RS00195 30243..30440 - 198 WP_000629109 DNA-binding protein -
H5D67_RS00200 30442..31656 - 1215 WP_001295060 VirB10/TraB/TrbI family type IV secretion system protein virB10
H5D67_RS00205 31653..32582 - 930 WP_000783386 TrbG/VirB9 family P-type conjugative transfer protein virB9
H5D67_RS00210 32588..33316 - 729 WP_004199085 virB8 family protein virB8
H5D67_RS00215 33511..34566 - 1056 WP_000235886 type IV secretion system protein virB6
H5D67_RS00220 34578..34835 - 258 WP_000759841 EexN family lipoprotein -
H5D67_RS00225 34845..35615 - 771 WP_000716326 type IV secretion system protein -
H5D67_RS00230 35625..38378 - 2754 WP_015060057 VirB3 family type IV secretion system protein virb4
H5D67_RS00235 38403..38693 - 291 WP_000916156 TrbC/VirB2 family protein virB2
H5D67_RS00240 38677..39321 - 645 WP_000953538 lytic transglycosylase domain-containing protein virB1
H5D67_RS00245 39367..39603 - 237 WP_001348696 hypothetical protein -
H5D67_RS00250 39554..40204 - 651 WP_004208545 transcription termination/antitermination NusG family protein -
H5D67_RS00255 40416..41576 - 1161 WP_004199101 MobP1 family relaxase -
H5D67_RS00260 41579..42124 - 546 WP_001348698 DNA distortion polypeptide 1 -
H5D67_RS00270 42465..42722 - 258 WP_004199355 hypothetical protein -
H5D67_RS00275 42719..42871 - 153 WP_162542717 hypothetical protein -
H5D67_RS00280 42958..43296 - 339 WP_001099725 hypothetical protein -
H5D67_RS00285 43390..43632 - 243 WP_000008707 hypothetical protein -
H5D67_RS00290 43622..43903 - 282 WP_001348701 hypothetical protein -

Host bacterium

ID   15888 GenBank   NZ_MN276082
Plasmid name   pHN7DS4 Incompatibility group   IncX3
Plasmid size   45907 bp Coordinate of oriT [Strand]   41902..42519 [+]
Host baterium   Citrobacter freundii strain GZ7DS4

Cargo genes

Drug resistance gene   blaNDM-5
Virulence gene   -
Metal resistance gene   -
Degradation gene   -
Symbiosis gene   -
Anti-CRISPR   -
