Detailed information of oriT
oriT
The information of the oriT region
| oriTDB ID | 108655 |
| Name | oriT_pUL021E  |
| Organism | Lactococcus lactis subsp. lactis strain UL021 |
| Sequence Completeness | - |
| NCBI accession of oriT (coordinates [strand]) | NZ_CP122944 (9553..9689 [+], 137 nt) |
| oriT length | 137 nt |
| IRs (inverted repeats) | 21..28, 42..49 (AAAAGGGG..CCCCTTTT) 25..30, 39..44 (GGGGAA..TTCCCC) |
| Location of nic site | 104..105 |
| Conserved sequence flanking the nic site |
GCTTGCAGTA |
| Note | Predicted by oriTfinder 2.0 |
oriT sequence
Download Length: 137 nt
>oriT_pUL021E
CGACACAATCCAAAGGGGATAAAAGGGGAAAGTGAAACTTCCCCCTTTTCAAGCCACATTGTAATACAAGAACGAAGTACTTTGTATTACAATGTGATAGCTTGCAGTATTTATGGGTTTATATTTTCTATTTTGTT
CGACACAATCCAAAGGGGATAAAAGGGGAAAGTGAAACTTCCCCCTTTTCAAGCCACATTGTAATACAAGAACGAAGTACTTTGTATTACAATGTGATAGCTTGCAGTATTTATGGGTTTATATTTTCTATTTTGTT
Visualization of oriT structure

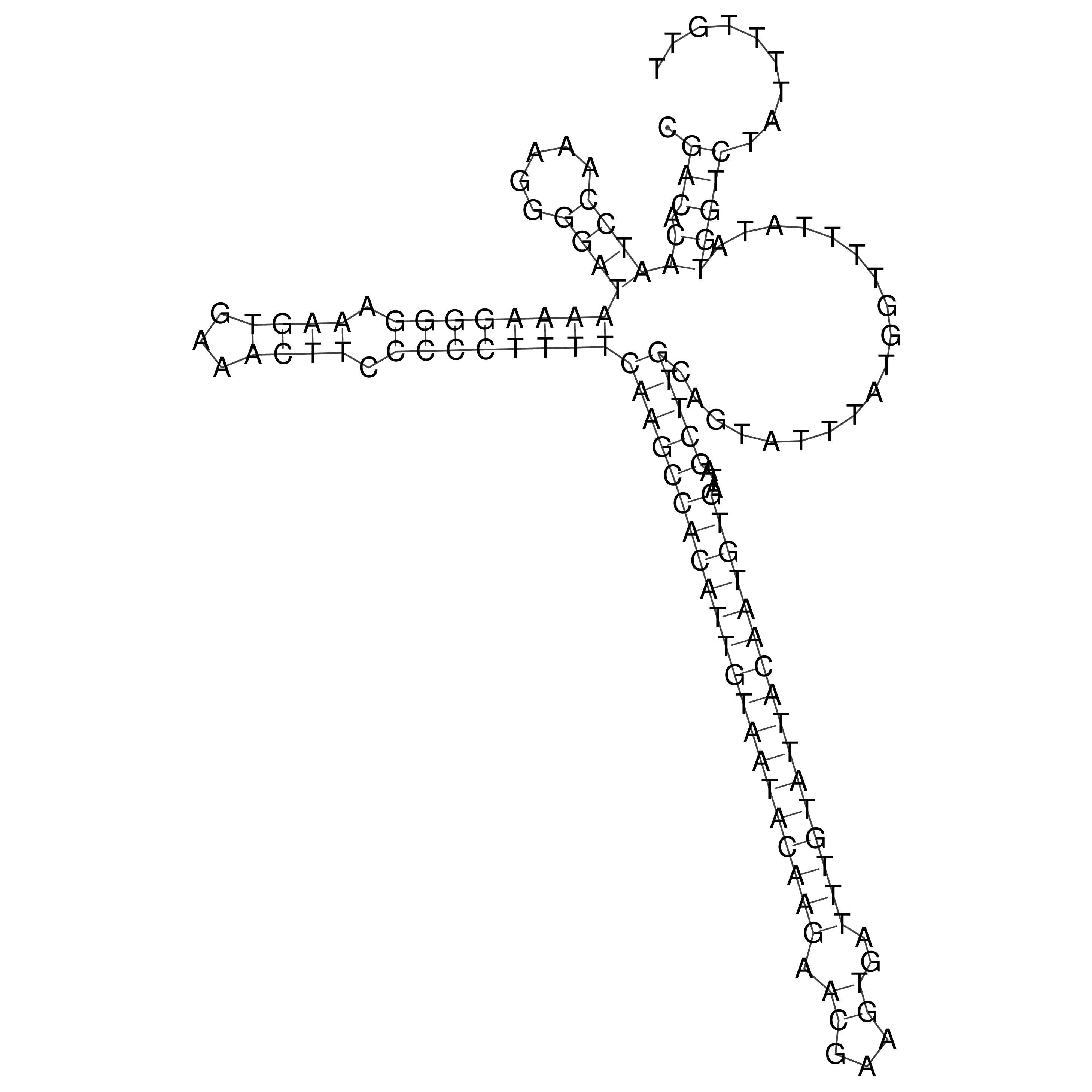

oriT secondary structure
Predicted by RNAfold.
Download structure file
Host bacterium
| ID | 9090 | GenBank | NZ_CP122944 |
| Plasmid name | pUL021E | Incompatibility group | - |
| Plasmid size | 10689 bp | Coordinate of oriT [Strand] | 9553..9689 [+] |
| Host baterium | Lactococcus lactis subsp. lactis strain UL021 |
Cargo genes
| Drug resistance gene | - |
| Virulence gene | - |
| Metal resistance gene | - |
| Degradation gene | - |
| Symbiosis gene | - |
| Anti-CRISPR | - |
