Detailed information of oriT

oriT

The information of the oriT region


oriTDB ID   103757
Name   oriT_pSH16G4466 in_silico
Organism   Salmonella enterica strain SH16G4466
Sequence Completeness      -
NCBI accession of oriT (coordinates [strand])   NZ_MK477617 (52579..52832 [+], 254 nt)
oriT length   254 nt
IRs (inverted repeats)      152..157, 159..164  (AAAAGT..ACTTTT)
 121..129, 134..142  (TTAAGGCTT..AAGCCTTAA)
 50..55, 59..64  (AATTTT..AAAATT)
Location of nic site      77..78
Conserved sequence flanking the
  nic site    		  TTTGGTTAAA
Note   Predicted by oriTfinder 2.0

  oriT sequence


Download         Length: 254 nt

>oriT_pSH16G4466
GGATTTAGGTTTTTTTTTAATCGCTTCACATTTCGTTAGCATGCGAAGAAATTTTGATAAAATTCTGGTCAGTTTGGTTAAAAAGTGTTACAAGTAAGCGGTGTGGTTGAAGGGATAGATTTAAGGCTTATTCAAGCCTTAAGAAAATACTAAAAGTTACTTTTCACCCTACCGAACACCTAACAAAAAATCCATGTTGAAGATTTGAACAATTGTAATGGCGCAAGGACAATCAGCACATGTCAGAATCTGAT

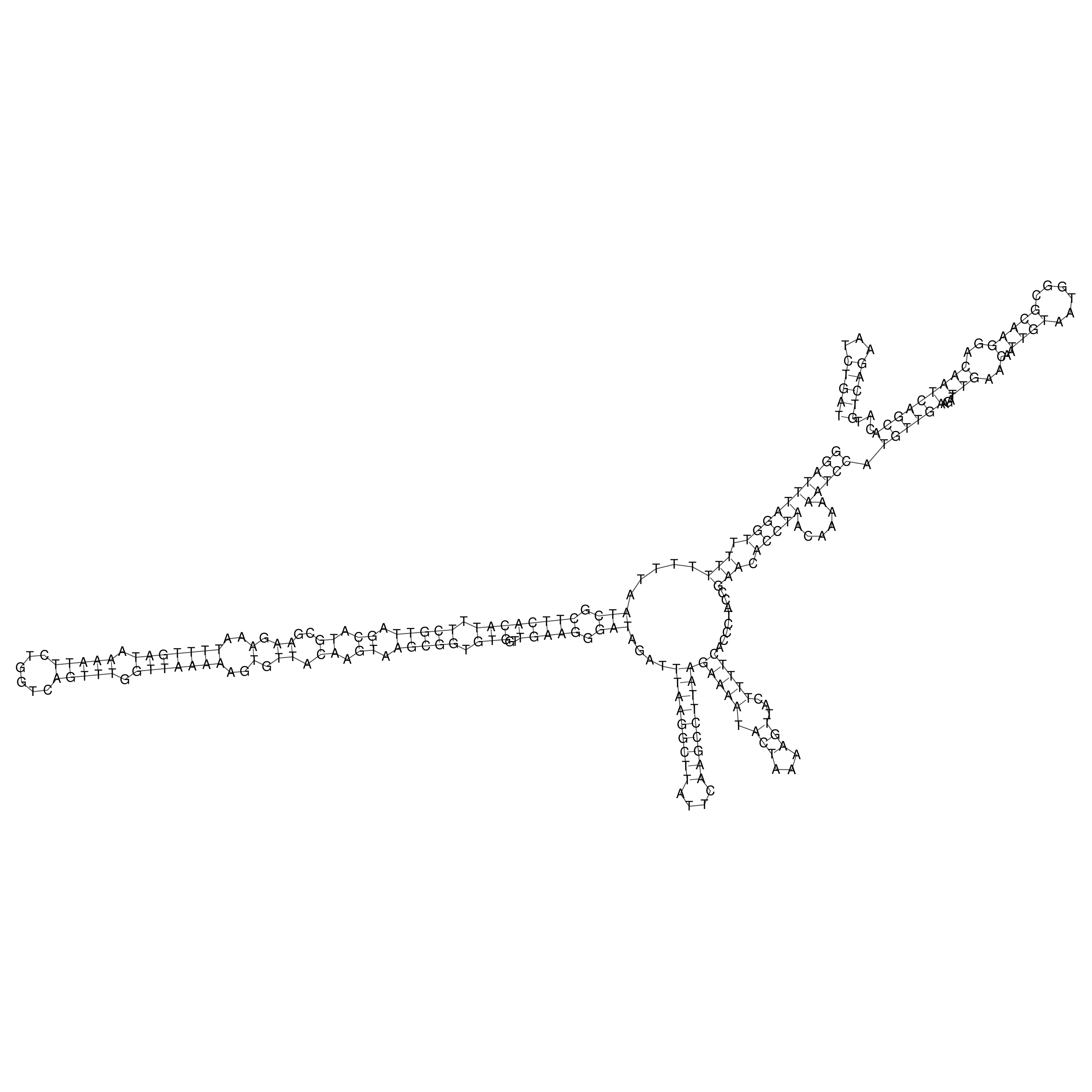

Visualization of oriT structure

  oriT secondary structure

Predicted by RNAfold.

Download structure file


Relaxase

ID   2789 GenBank   WP_001011151
Name   mobH_HTW00_RS00290_pSH16G4466 insolico UniProt ID   A0A1P8VU63
Length   1048 a.a. PDB ID
Note   Predicted by oriTfinder 2.0

  Relaxase protein sequence


Download         Length: 1048 a.a.        Molecular weight: 117773.04 Da        Isoelectric Point: 4.6054

>WP_001011151.1 MULTISPECIES: MobH family relaxase [Enterobacterales]
MNFRALYLCIKRILGIFSSQENDATSVMIEDISSLSPFAQILGDQKYTVPDHPNPEVLKFIEYPTRPTGI
QTFNEQSILSLYREKLHSISMMLAISDSDIRDDAYTFTNLVLKPLVEYVRWIHLLPASENHHHNGIGGLL
SHSLEVAILSLKNAHHSELRPIGYQDEEVVRRKVYLYAAFICGLVHDAGKVYDLDIVSLNLASPIIWTPS
SQSLLDWARENDVVEYEIHWRKRIHNQHNIWSSVFLERILNPVCLAFLDRVNKERVYSKMITALNVYTDG
NDFLSKCVRTADFYSTGTDLNVLRDPIMGLRSNDAAARAISTIKHNFTSININNYNAKPMHIIIVNGEVY
LNENAFLDFVLNDFELHKYNFPQGEAGKTVLVESLVQRGYVEPYDDERVVHYFIPGIYSENEISNIFRNG
IGKLEFYNLLKLRWIGLIFDSYKIPDSVPGLFSVNANKDFIYIDEQKTVTEYRRPVPGRDAITKITDTVE
TAVLKVNDLGRSTASIDVDIHSKKNEGSSDDFEKKAESDNEIDNDTQIVKSEGEEAADPVIPDIEESEDE
SAKDTESHVLVNQLHELLLSAPLSNDYIVCVDAVPYLNIDATMALLPGLDEKAFSEEPYFQLTFREGSLD
GMWIVRDIDDLRLVQLGDNCAGFQLTYHEPRRPTTLKSLFNTSMYQALVINDESSVENSAPRPKQTLELP
PPRVNAVEEHSGDVEYHGTDSASATGPLKTEAVEYEHYQHLFEEEDEEHEIIDYTDFTQLSVSRPEVGSC
ATSSSVHNEKLLPEPSELPELNREQNADPQGTIERSMDVSVGQENSEPDTEGNCPPPAEVVYSQTEAAAT
SVMASEEPALPPVLEESNGEHAPTDAKGHHLSPALARLFAPTAPVEKQNPKRNRNKSSDKAEVQKPASPV
SGHNLNSKVFATTESDQNGEFSLISEGDVTELEFVEIASVLHQILSKMEVAFKRKRKNRFMVSTPNTLYL
TQSCVEKFGSQLEAQDLFNKLPQYLVNSGAVINTKCHAFNMPTLLAASDRAKVDIERIINNLKEAGNL

  Protein domains


Predicted by InterproScan.

Putative helicase (TraI_2)

(106-302)


  Protein structure


Source ID Structure
AlphaFold DB A0A1P8VU63


T4CP

ID   2617 GenBank   WP_046788497
Name   traD_HTW00_RS00285_pSH16G4466 insolico UniProt ID   _
Length   694 a.a. PDB ID   _
Note   Predicted by oriTfinder 2.0

  T4CP protein sequence


Download         Length: 694 a.a.        Molecular weight: 78171.95 Da        Isoelectric Point: 8.0177

>WP_046788497.1 MULTISPECIES: conjugative transfer system coupling protein TraD [Enterobacterales]
MSDSKRTNLHAQENFYRPILEYRSASILLICSVSMLYMGLSSDGLDIAPIVLFTSILLFLLCLYRCKTAA
PFLMAHWRVFKRHFMFVSLDSLRVINKSNFFSNERKYRQLVQDYQNKNKDIPERKSYFCDGFEWGPEHAD
RAYQIANLSSDKREIELPFVFNPIKRHFDAMARKMGGSNAIFAVERREPIFVTEDNWFGHTLITGNVGTG
KTVLQRLLSISMLHLGHVVVVIDPKNDAEWRESLMEEAKTLGLPFYKFHPGQPASSVCIDVCNTYTNVSD
LTSRLLSLVTVPGEVNPFVQYAKALVSNVISGLSYIEKKPSIYLIHKNMKSHMSIVNLTVKVMESCYARY
YGYDVWTEKVKYVANETLPVRFKRLAEWFTAHFMNYEGSEQIDWLDTVSQLIDYSMSDPEHMAKMTAGIM
PVFDMLIEKPLNELLSPNPNSVSSREIVTSEGMFSTGGVLYISLDGLSNPDTAAAISQLIMSDLTSCAGS
RYNAQDGDMSANSRISIFVDEAHSAINNPMINLLAQGRAAKIALFICTQTISDFIAAASVETANRITGLC
NNYISLRVNDTPTQTLVVENFGKSAISTNMVTYTTGSETSLPHNNFSGSISERKQTTLEESIPKDLLGQV
PMFHIVARLQDGRKVVGQIPIAVAEKQMKPNTTLSEMLFKKAGKVTLRQNLDIKNLNKFLRKFH

  Protein domains


Predicted by InterproScan.

AAA-like domain (AAA_10)

(199-249)

Type IV secretion-system coupling protein DNA-binding domain (TrwB_AAD_bind)

(406-609)

  Protein structure



No available structure.




T4SS

T4SS were predicted by using oriTfinder2.

Region 1: 221443..230650

Locus tag Coordinates Strand Size (bp) Protein ID Product Description
HTW00_RS01215 221443..224124 - 2682 WP_000387412 TraC family protein virb4
HTW00_RS01220 224133..225083 - 951 WP_001022587 IncHI-type conjugal transfer lipoprotein TrhV traV
HTW00_RS01225 225093..225845 - 753 WP_183079335 protein-disulfide isomerase HtdT -
HTW00_RS01230 225964..226446 - 483 WP_000377633 hypothetical protein -
HTW00_RS01235 226454..227809 - 1356 WP_000351841 IncHI-type conjugal transfer protein TrhB traB
HTW00_RS01240 227799..228260 - 462 WP_000521240 plasmid transfer protein HtdO -
HTW00_RS01245 228262..229533 - 1272 WP_000592090 type-F conjugative transfer system secretin TraK traK
HTW00_RS01250 229533..230321 - 789 WP_000783153 TraE/TraK family type IV conjugative transfer system protein traE
HTW00_RS01255 230333..230650 - 318 WP_000043357 type IV conjugative transfer system protein TraL traL
HTW00_RS01260 230701..231054 - 354 WP_000423602 hypothetical protein -
HTW00_RS01265 232203..233078 - 876 WP_000594612 RepB family plasmid replication initiator protein -
HTW00_RS01270 233555..234610 + 1056 WP_001065779 hypothetical protein -
HTW00_RS01275 234628..234828 + 201 WP_000594931 hypothetical protein -
HTW00_RS01280 234825..235541 + 717 WP_046788421 zinc finger-like domain-containing protein -

Host bacterium

ID   4197 GenBank   NZ_MK477617
Plasmid name   pSH16G4466 Incompatibility group   IncHI2
Plasmid size   249071 bp Coordinate of oriT [Strand]   52579..52832 [+]
Host baterium   Salmonella enterica strain SH16G4466

Cargo genes

Drug resistance gene   oqxB, oqxA, sul1, dfrA12, sul3, ant(3'')-Ia, cmlA1, aadA2, floR, sul2, aph(4)-Ia, aac(3)-IVa, blaCTX-M-14, fosA3, mcr-1.1
Virulence gene   -
Metal resistance gene   terE, terD, terC, terB, terA, terZ, terW
Degradation gene   -
Symbiosis gene   -
Anti-CRISPR   -
