Detailed information of oriT

oriT

The information of the oriT region


oriTDB ID   102993
Name   oriT_p203740_80 in_silico
Organism   Escherichia coli strain 203740
Sequence Completeness      -
NCBI accession of oriT (coordinates [strand])   NZ_CP025914 (37303..37391 [-], 89 nt)
oriT length   89 nt
IRs (inverted repeats)     _
Location of nic site      _
Conserved sequence flanking the
  nic site    		  _
Note   Predicted by oriTfinder 2.0

  oriT sequence


Download         Length: 89 nt

>oriT_p203740_80
GGGGTGTCGGGGCGAAGCCCTGACCAGGTGGTAATTGTAATAACGTCGCGTGTGACGGTATTACAATTACACATCCTGTCCAGTTTTTC

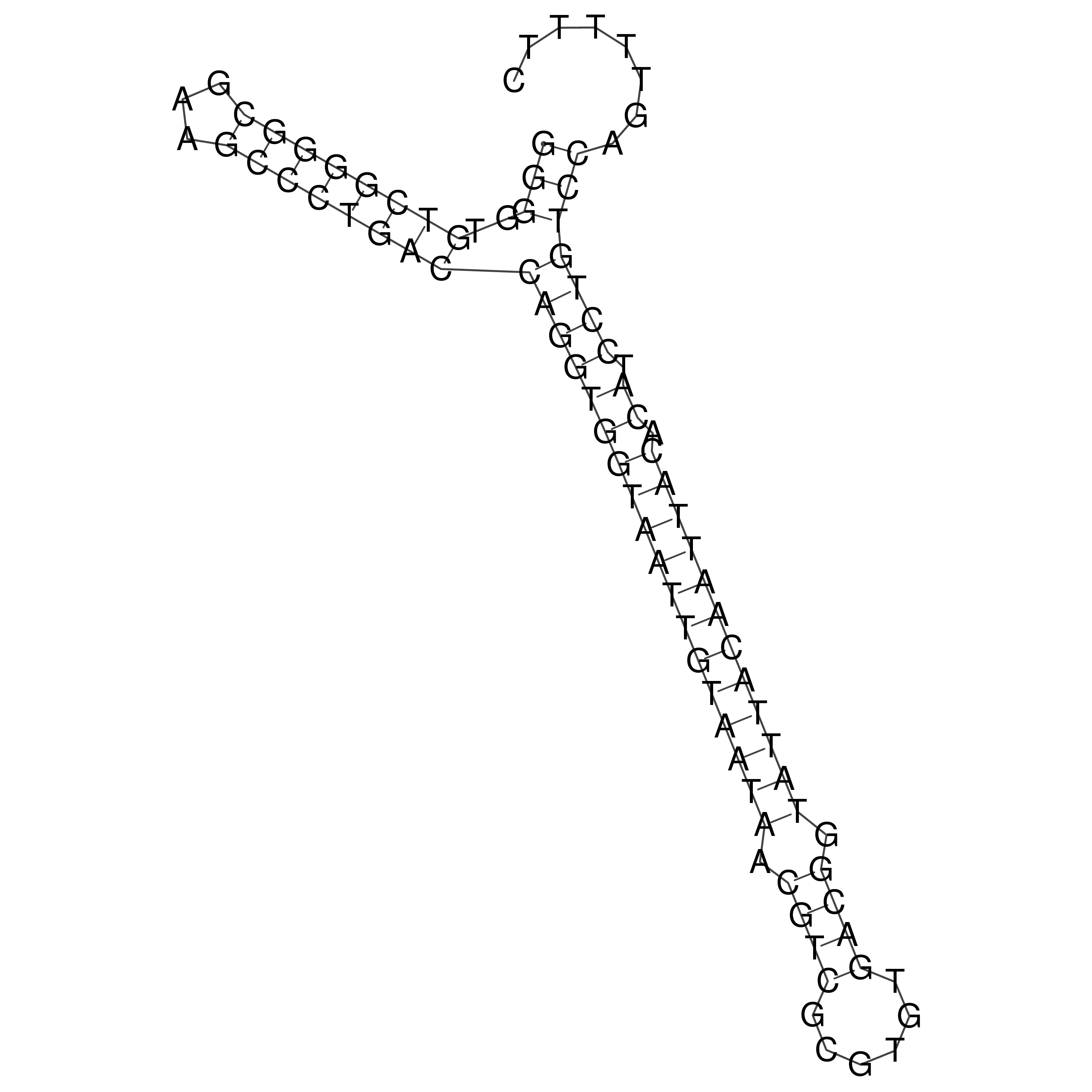

Visualization of oriT structure

  oriT secondary structure

Predicted by RNAfold.

Download structure file


Relaxase

ID   2245 GenBank   WP_001464667
Name   nikB_CXW72_RS24720_p203740_80 insolico UniProt ID   _
Length   899 a.a. PDB ID
Note   Predicted by oriTfinder 2.0

  Relaxase protein sequence


Download         Length: 899 a.a.        Molecular weight: 103809.30 Da        Isoelectric Point: 7.4222

>WP_001464667.1 IncI1-type relaxase NikB [Escherichia coli]
MNAVIPKKRRDGKSSFEDLVSYVSVRDDMSDEELNLSSSSQAEQPHRSRFSRLVDYATRLRNESFVALVD
VMKDGCEWVNFYGVTCFHNCTSLETAAADMEYIAQQAHYAKDNTDPVFHYILSWQAHESPRPEQIYDSVR
HTLKSLGLGEHQYVSAVHTDTDNLHVHVAVNRVHPVTGYLNCLSWSQEKLSRACRELELKHGFAPDNGCW
VHAPGNRIVRKTAVERDRQNAWTRGKKQTFREYVAQTAVAGLRSEPVHDWLSLHRRLAEDGLYLSQMDGK
FLVMDGWDRNREGVQLDSFGPSWCAEKLMKKMGDYTPVPKDIFSQVEAPGRYNPDFIAADVRPEKIAETE
SLQQYACRHLGERLPEMAREGRLENCQAIHRTLAEAGLWMRVQHGHLVICDGYDHNQTPVRADSVWSLLT
LDNVNQLDGGWQPVPTDIFRQVTPTERFRGRRMESCPATDKEWHRMRTGTGPQGAIKRELFSDKESLWGY
SISHCSPQIEEMITQGEFTWQRCHELFAQQGLMLQKQHHGLVVVDAFNHEQTPVKASSIHPDLTLGRAEP
QAGPFVSAPADLFDRVQPESRYNPELAVSDRYGVSSKRDPMLRRQRREARAEARADLRARYLAWREQWRK
PDLRYGERCREIHQACRLRKSHIRAQYDDPALRKLHYHIAEVQRMQALIRLKEDIRNERQKLIADGKWYP
PSYRQWVEIQAAQGDRAAVSQLRGWDYRDRRKDKSRTTTTDRCVVLCEPGGTPVYGNTGDLEARLQKNGS
VRFRDRRTGEFVCTDYGDRVVFRNHHDRNALADKLDLIAPVLFGRDPRMGFEPEGNDKQFNQVFAEMVAW
HNVTGCTGHEDYRITRPDVDHHREGSERYYRDYIAANSNDDASLPPPEQDKRWEPPSPG

  Protein domains


Predicted by InterproScan.

Relaxase/Mobilisation nuclease domain (Relaxase)

(62-314)


  Protein structure



No available structure.




Auxiliary protein

ID   915 GenBank   WP_001283947
Name   WP_001283947_p203740_80 insolico UniProt ID   A0A142CMC2
Length   110 a.a. PDB ID   _
Note   Predicted by oriTfinder 2.0

  Auxiliary protein sequence


Download         Length: 110 a.a.        Molecular weight: 12613.57 Da        Isoelectric Point: 10.7463

>WP_001283947.1 MULTISPECIES: IncI1-type relaxosome accessory protein NikA [Enterobacteriaceae]
MSDSAVRKKSEVRQKTVVRTLRFSPVEDETIRKKAEDSGLTVSAYIRNAALNKRINSRTDDAFLKELMRL
GRMQKHLFVQGKRTGDKEYAEVLVAITELTNTLRKQLMEG

  Protein domains



No domain identified.



  Protein structure


Source ID Structure
AlphaFold DB A0A142CMC2


Host bacterium

ID   3436 GenBank   NZ_CP025914
Plasmid name   p203740_80 Incompatibility group   IncFIC
Plasmid size   80861 bp Coordinate of oriT [Strand]   37303..37391 [-]
Host baterium   Escherichia coli strain 203740

Cargo genes

Drug resistance gene   -
Virulence gene   cssA
Metal resistance gene   -
Degradation gene   -
Symbiosis gene   -
Anti-CRISPR   -
