T4SS ID324
StrainBurkholderia multivorans ATCC 17616
Repliconchromosome 1 [Browse all T4SS(s) in this replicon]
ClassificationType IVA; Type P
insolico Bioinformatics investigation has been performed on this T4SS.

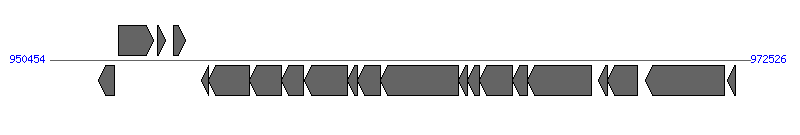

T4SS components

The information of T4SS components from NC_010804
#Locus tag (Gene)Coordinates [+/-], size (bp)Protein GIProductComponent
1BMULJ_00877 (fdhC)951990..952490 [-], 501189349738formate dehydrogenase subunit gamma
2BMULJ_00878952622..953728 [+], 1107189349739LysR family transcriptional regulator
3BMULJ_00879953831..954100 [+], 270189349740hypothetical protein
4BMULJ_00880954361..954711 [+], 351189349741hypothetical protein
5BMULJ_00881955215..955457 [-], 243189349742small protein
6BMULJ_00882 (trbI)955454..956737 [-], 1284189349743type IV secretion system protein  TrbI
7BMULJ_00883 (trbG)956740..957741 [-], 1002189349744type IV secretion system protein  TrbG
8BMULJ_00884 (trbF)957738..958442 [-], 705189349745conjugal transfer protein TrbF  TrbF
9BMULJ_00885 (trbL)958467..959849 [-], 1383189349746conjugal transfer protein TrbL  TrbL
10BMULJ_00886959846..960148 [-], 303189349747putative lipoprotein
11BMULJ_00887 (trbJ)960160..960888 [-], 729189349748conjugal transfer protein TrbJ  TrbJ
12BMULJ_00888 (trbE)960885..963335 [-], 2451189349749conjugal transfer ATPase TrbE  TrbE
13BMULJ_00889 (trbD)963347..963631 [-], 285189349750type IV secretion system protein  TrbD
14BMULJ_00890 (trbC)963628..964005 [-], 378189349751type IV secretion system protein  TrbC
15BMULJ_00891 (trbB)963992..965047 [-], 1056189349752type IV secretion system protein  TrbB
16BMULJ_00892965044..965520 [-], 477189349753hypothetical protein
17BMULJ_00893 (traG)965517..967526 [-], 2010189349754conjugal transfer coupling protein TraG  TraG
18BMULJ_00894967762..968025 [-], 264189349755putative lipoprotein
19BMULJ_00895 (traR)968025..968966 [-], 942189349756LysR family conjugal transfer regulatory protein
20BMULJ_00896 (atp7)969233..971728 [-], 2496189349757Cu2+-exporting ATPase
21BMULJ_00897971822..972082 [-], 261189349758putative cation-transporting ATPase transmembrane protein
flank Genes in the 5-Kb flanking regions if available, or non-essential genes in the T4SS gene cluster if any.

Download FASTA format files
Proteins        Genes
This T4SS is encoded by the integrative and conjugative element (ICE) ICEBmu17616-1 and is thought to contribute to the transfer of this element. (click on the ICE name to view the detail ICE informaion in ICEberg, an ICE database)
(1) Bi D; Xu Z; Harrison EM; Tai C; Wei Y; He X; Jia S; Deng Z; Rajakumar K; Ou HY (2012). ICEberg: a web-based resource for integrative and conjugative elements found in Bacteria. Nucleic Acids Res. 40(Database issue):D621-6. [PudMed:22009673] in_silico
in_silico This literature contains bioinformatics investigation
